Fiber laser marking machine

Fiber laser marking machine

Additional information

Application:

Applicable materials: Any metal (including rare metals), stainless steel, alumina materials, engineering plastics, electroplating materials, coating materials, spray materials, plastic rubber, epoxy resin, ceramics, and etc.

Applicable industries: Apple casing (iPhone), alumina, aluminum alloy, mobile phone stainless steel trim, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tool accessories, knives, glasses, watches, jewelry, Auto parts, luggage buckle, cookware, stainless steel products and other industries.

ItemsData
Laser power 20w 30w 50w 100w
Frequency20khz-200khz
Marking area 100x100mm, 170x170mm, 200x200mm, 300x300mm
Max speed12000mm/s
Minimum line width0.015mm
Marking depth 0.01-1mm(Ajustable)
Repeatability0.001mm
Laser wavelength 1064nm
Operation system Windows
Connnection port USB
Beam quality M2M2﹤2
Laser lifespan10,000hours
Minimum character0.3mm
Power 220V 50HZ 1PH(110V 60HZ 1PH)
Cooling type Air cooled
Software EZCAD2

Optional parts

3 in 1 rotary                                                                     rotary for ring

Mopa 20w 30w with colour marking                Mopa 60w 100w with deep marking

Mopa with colour marking Mopa with colour marking

Features

With compact size, long laser lifespan(100,000 hours), low power consumption (160Q), high beam quality, USB interface, support for WIN7/10 and other operating systems;

Not affected by harsh environment and temperature changes; in the state of power failure, the battery and car cigarette lighter can be used for operation. Before the advent of fiber lasers, the laser source of laser marking systems generally used continuous or pulsed CO2 lasers, Nd-YAG lasers as light sources. Compared with traditional laser light sources, fiber lasers have better performance, and the divergence angle is 1/4 of that of semiconductor-pumped lasers (more suitable for precision and fine marking machine industries); electro-optical conversion efficiency is 1/1 of that of flashlamp-pumped solid-state laser marking machines. 10; its average work can reach 100,000 hours;

The fiber laser is completely air-cooled and does not require ancillary equipment such as refrigerators, cooling water pipes and temperature controllers. The volume is reduced, the energy consumption is reduced, and the user’s cost of use is much lower than the marking system using traditional laser light sources.

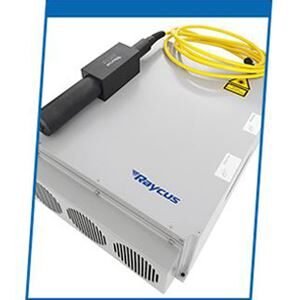

Raycus/Max fiber laser pulses work at 20-200KHZ repetition frequency, and the finished fiber laser with 10-20W average power output has a volume of only 58CM*280*56CM and a weight of 10KG; because the laser diode works with voltage, the electro-optical efficiency of the fiber optic machine Up to 70%, the drive power can be supported by UPS power supply in the state of power failure, and the power consumption is only 160W. Applicable materials and industry applications It is used in fields that require high depth, smoothness and fineness, such as watches, mold industry, bitmap marking, etc.



Closed type

Split Desktop




FAQ

Q1: Can it work with Lightburn?

Yes, it is compatible with Lightburn.

Q2: Can I use the fiber laser marking machine in the office or at home?

Yes, you can use the machine in the office or at home. The machine is with 220v 1ph or 110v 1ph. It is very easy for you to connect the power.

Q3: What is the marking thickness of 30W 50W 100W laser marking machine?

Under 163mm focus length of Galvo:

The 30w marking thickness is 0.2-0.3mm

The 50w marking thickness is 0.2-0.5mm

The 100w marking thickness is 0.8mm

It is also depens on the marking material.

Q4: What about warranty?

The machine warranty is one year. The fiber laser source warranty is two years.

Q5: Once the machine have some problem, how could I do?

Firstly, our engineer will figure out what the problem maybe. We can send the new parts for change freely.

Q6: What kinds of documents we will provide to customers after shipment?

After shipment, we will provide Bill of lading, packing list, commercial invoice, certification of original etc.

Q7: How long about the delivery?

The machine production time is around 5-7days. And we also some standard machine in stock. Please check with us before order. The sea shipping time is around 10-35days according to different countries.
